Forged 42CrMo Steel Spline Gear Shaft Spline Hobbing Main Drive Shaft

Brand Name : YIZGEAR

Model Number : SS220090301

Place of Origin : CHINA

MOQ : 5 Pieces

Price : $50.0/Piece

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 1000 Pieces/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Material : 42CrMo

Manufacturing : Spline Hobbing

Hardness : 45-50 HRC

Diameter Pitch : 220

Major Diameter : 238

Root Diameter : 215.3

Contact Now

Forged 42CrMo Steel Spline Hobbing Involute Spline Shaft Main Drive Shaft

1) Applications of Spline Shaft

  1. Aerospace
  2. Automotive
  3. Energy generation
  4. Manufacturing equipment
  5. Military
  6. Mining
  7. Oil and gas
  8. Robotics

2) Manufacture of Splined Shaft

  1. CNC Machining
  2. Spline Hobbing
  3. Spine Grinding

3) Material of Splined Shaft

  1. Alloy Steel
  2. Carbon Steel
  3. Aluminum Alloy
  4. Stainless Steel

4) Types of Splined Shaft

  1. Parallel key splined shaft
  2. Involute Splined Shaft

Forged 42CrMo Steel Spline Gear Shaft Spline Hobbing Main Drive Shaft

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Spline
Manufacturing Process Spline Milling & Spline Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Forged 42CrMo Steel Spline Gear Shaft Spline Hobbing Main Drive Shaft

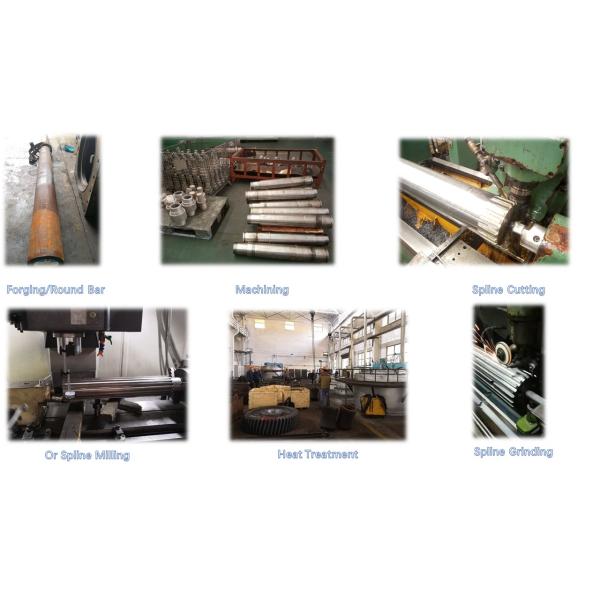

Manufacturing Process

Forged 42CrMo Steel Spline Gear Shaft Spline Hobbing Main Drive Shaft
